DC – DC felfelé és lefelé állítható kombinált áram és feszültség stabilizátor 8A (hut_8000) AKCIÓS !!!! KAPHATÓ !!!!!

Kiegészítő termékek

• Részletek
• Vélemények

Részletek

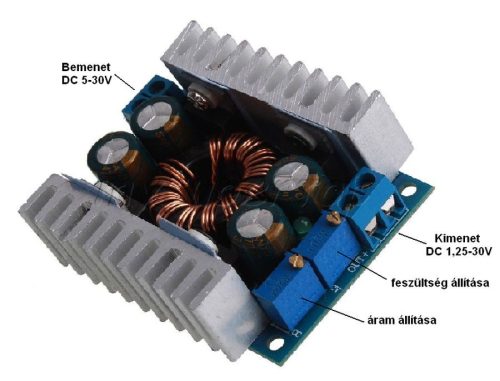

Input voltage :DC5-30V
Input Current: 8A (MAX) (can use in Long working hours when input Current:<= 5A)
Quiescent Current: 4mA (Operating Voltage Different,There will be errors)
Output voltage: DC1.25-30V continuously adjustable
Output Current: 8A (MAX)
(it can be long time susing when natural cooling out put current <=5A)
Output current range :0.2-8A
Operating temperature: -40 to +85°c
Operating Frequency: 150KHz
Conversion efficiency: Up to 91% (efficiency and input and output voltage, current, voltage dropout related)
Current protection: yes
Short circuit protection: (enter the 8A fuse) double circuit protection, use more secure.
Over-temperature protection: Yes (over-temperature automatically reduces the output voltage)
Input Reverse Polarity Protection: None(if required in the input string into diode)
Output anti-anti-irrigation: Yes, for charging plus blocking diode is not required.
Installation: four 3mm screws
Connection: welding output, (V-IN as an input, V-OUT is the output)
Module dimensions: 60X53X22mm/2.36X2.08X0.86inch(LxWxH)
Weight:69g
