12V-os RELÉ, 40A, DC 9-18V (4 érintkezős) KAPHATÓ !!!!!!! -

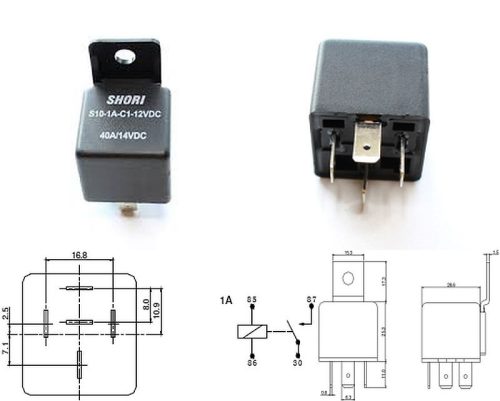

Shori Car Relay 12VDC 40A 1 x (on) - S10-1A-C1-12VDC

Manufacturer	SHORI ELECTRIC
Type of relay	electromagnetic
Contacts configuration	SPST-NO
Rated coil voltage	12V DC
Contact current max.	40A
DC contacts rating @R (at resistance load)	40A / 12VDC
Relay variant	automotive
Coil voltage min.	9V DC
Coil voltage max.	18V DC
Coil resistance	80O
Contact material	silver alloy
Operating temperature	-30...80°C
Body dimensions	28.6 x 28.6 x 25.3mm
Mounting	on panel, socket
Coil power consumption	1.8W
Relay series	S10
Mechanical durability	10000000cycles
Weight	40g
Contact resistance	100mO
Coil current	150mA
Leads	6,3x0,8mm connectors
Operate time	10ms
Release time	10ms
Electrical life	100000cycles
